Articulating Desk Mount Arm with VESA Plate

Product Image
Articulating Desk Mount Arm with VESA Plate

Articulating Desk Mount Arm with VESA Plate

SKU: ADD-ADMA

UPC: 656777021337

$174.00 - $174.00
$174.00
$174.00 - $174.00
$174.00

VESA Compatible

Efficient Clamp Mounting

Portrait & Landscape

Adjustable Joints

Choose a Compatibility
- +

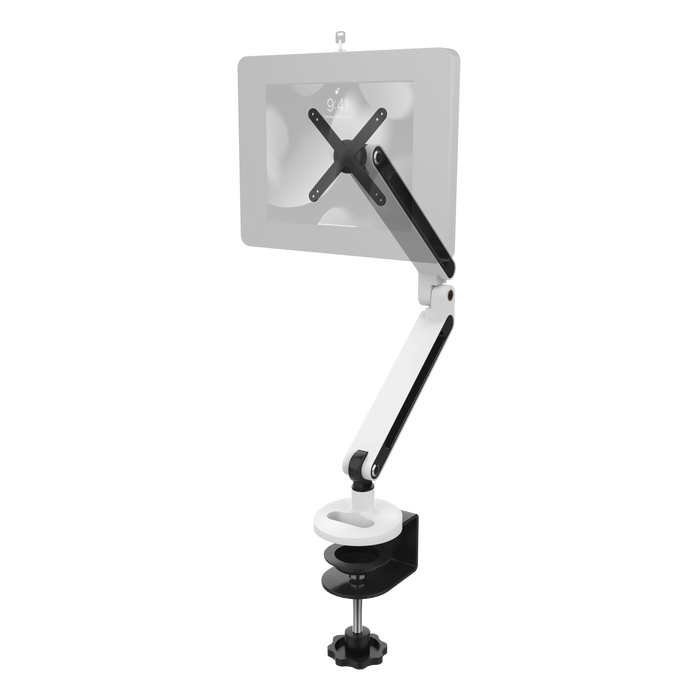

This sleek, articulating monitor arm creates a secure space saving solution on countertops, tables or desks. It’s an ideal solution for hotel lobbies, conference rooms, classrooms, waiting rooms, or any place that requires a screen with lots of angle adjustment. The padded base mounts to surfaces up to 2.36-inches thick via simple rotary C-clamp. When the mount is in place, use the provided security tool to lock the clamp. The VESA plate at the top of the mount attaches to and can be easily set up for either portrait or landscape orientation. The head rotates 360 degrees and tilts at 3 axes, allowing for virtually any screen placement. The center joint features a 19-inch vertical adjustment. It can be loosened, repositioned, and locked in place with an included Allen key. The base joint also allows full rotation, allowing convenient angle adjustments. Weight load capacity is 5 lbs.

  • Sturdy metal C-clamp fits surfaces up to 2.36 inches thick
  • 360-degree rotation from both the head and base joints

  • Angle adjustable arm with flexible elbow joint allows 19 inches of height adjustment via Allen key locking mechanism at the center joint

  • VESA plate tilts at 3 axes and rotates for use in portrait and landscape orientations
  • Versatile C-clamp installation system can be used on countertops

    • Specifications

    Measures
    • Maximum arm length: 19.75”
    • Arm width: 1.5”
    • Arm depth: 1”
    • Clamp diameter: 4”
    • Maximum clamp height: 19”
    • VESA pattern sizes: 75x75 and 100x100 mm
    • Weight: 2lbs 7oz
    Package Includes

    • (1) VESA plate
    • (2) Arms
    • (1) C-clamp mounting system
    • (1) Set of mounting hardware & routing clips

    Specifications

    Package Includes

    Downloads

    • Maximum arm length: 19.75”
    • Arm width: 1.5”
    • Arm depth: 1”
    • Clamp diameter: 4”
    • Maximum clamp height: 19”
    • VESA pattern sizes: 75x75 and 100x100 mm
    • Weight: 2lbs 7oz
    • (1) VESA plate
    • (2) Arms
    • (1) C-clamp mounting system
    • (1) Set of mounting hardware & routing clips
    Download Sell Sheet
    Download Manual


    * CTA Digital's security products are designed to protect your device from theft. Products are made with high-quality materials, like reinforced heavy aluminum slots, steel cables, and secure lock-and-key systems. Where CTA Digital makes every effort to protect against destruction of or loss of property, we cannot guarantee, and cannot be responsible for any event that leads to the damage or theft of a device.
