Single Monitor Slim Spring Arm w/ USB Ports

Product Image
Single Monitor Slim Spring Arm w/ USB Ports

Single Monitor Slim Spring Arm w/ USB Ports

SKU: ADD-SSMA

UPC: 656777022587

$87.75 - $87.75
$87.75
$87.75 - $87.75
$87.75

VESA Compatible

Adjustable Joints

Dual USB Ports

Cable Routing System

Choose a Color
Choose a Compatibility

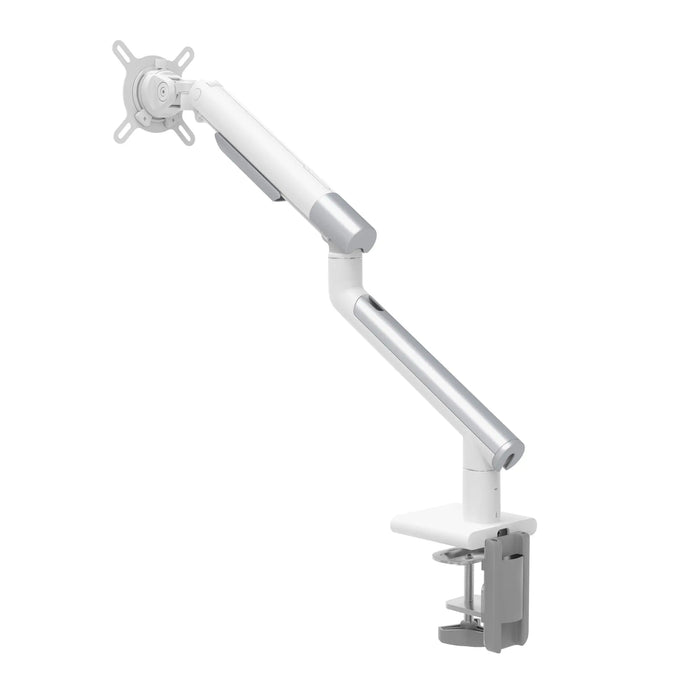

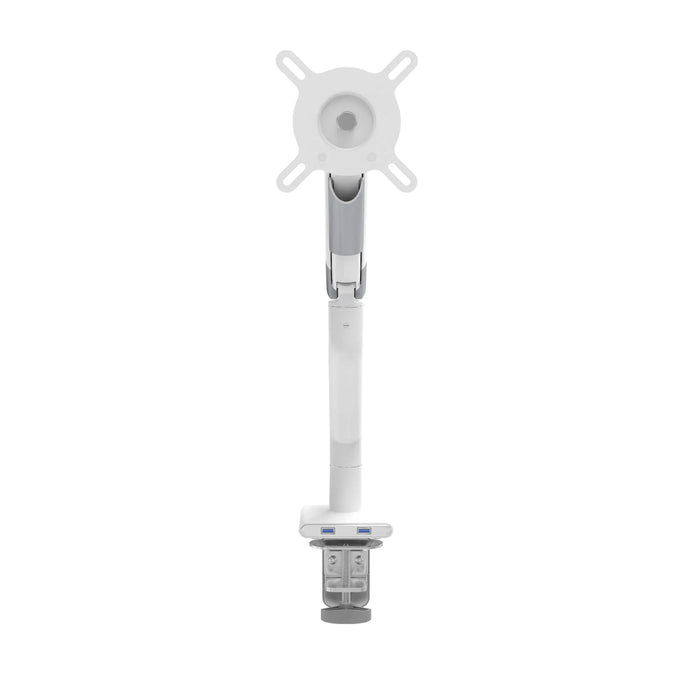

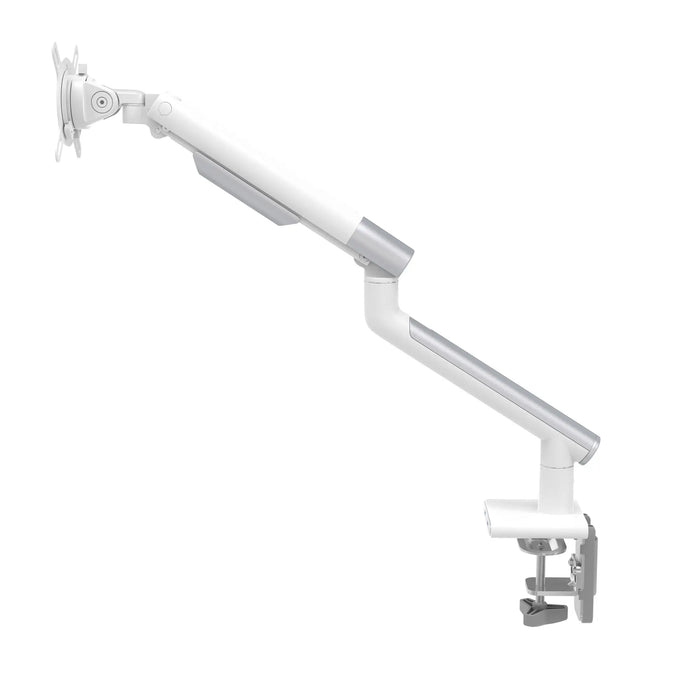

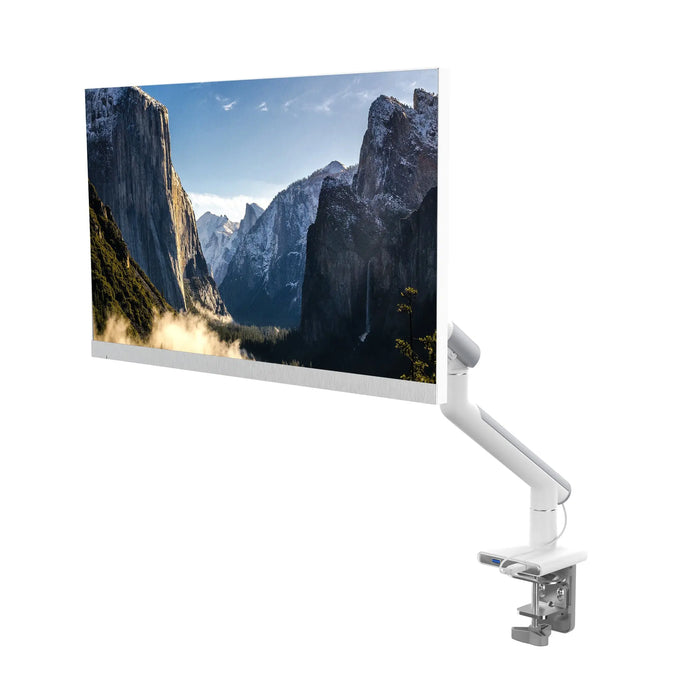

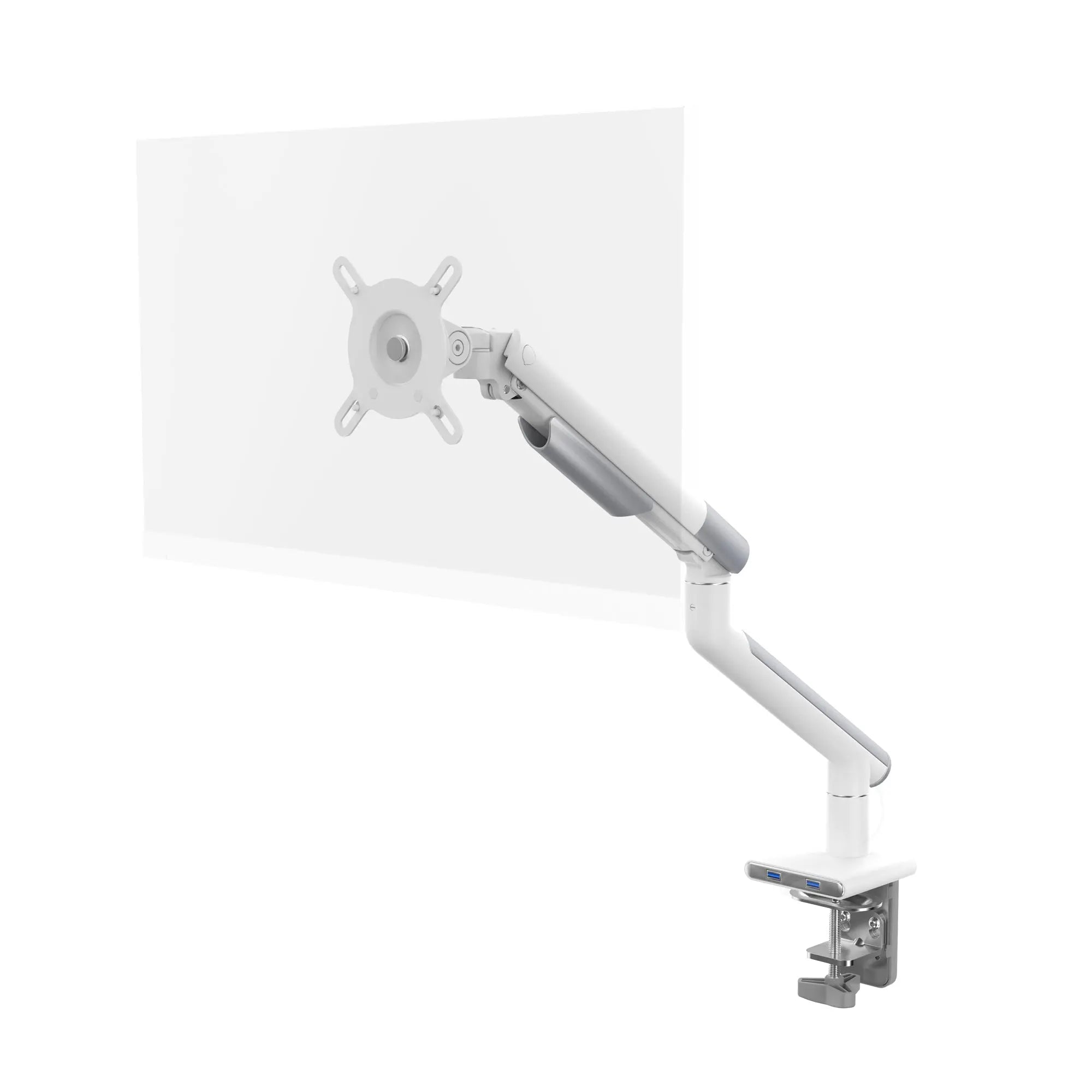

CTA Digital’s Single Monitor Slim Spring Arm with Dual USB Ports lives at the crossroads of style and function. This sturdy, versatile mount features a gorgeous white finish that’s sure to elevate the look of any office décor – all with smooth movements for a great work experience. A spring-loaded center joint locks to the perfect angle when tightened with the included Allen key, and swivels a full 360-degrees. This mount also has a 180° rotation stop feature that prevents the monitor arm from swinging into screens or walls. The head of this sturdy unit attaches via standard VESA 75 x 75 or 100 x 100 mm plate to curved or flat monitors up to 32 inches and 19.8 lbs. It slides out of a locking bracket, for simple mounting. The head tilts a full 180-degrees up and down as well as left to right, and locks in place with an Allen key. The head also rotates for use in either portrait or landscape orientation. The base swivels to create the ideal viewing angle. The mount attaches in two ways. It grips counters that have a thickness range of 0.39 to 3.35 inches via padded rotary C-clamp. It can also be permanently screwed into surfaces through pre-drilled grommets with a hole diameter of 0.39 to 2.3 inches. The base comes with 2 USB ports, ideal for both charging and additional devices. Store Allen keys in holes at the rear of the C-clamp mount. All cables can be managed via useful clips down the spring arms.

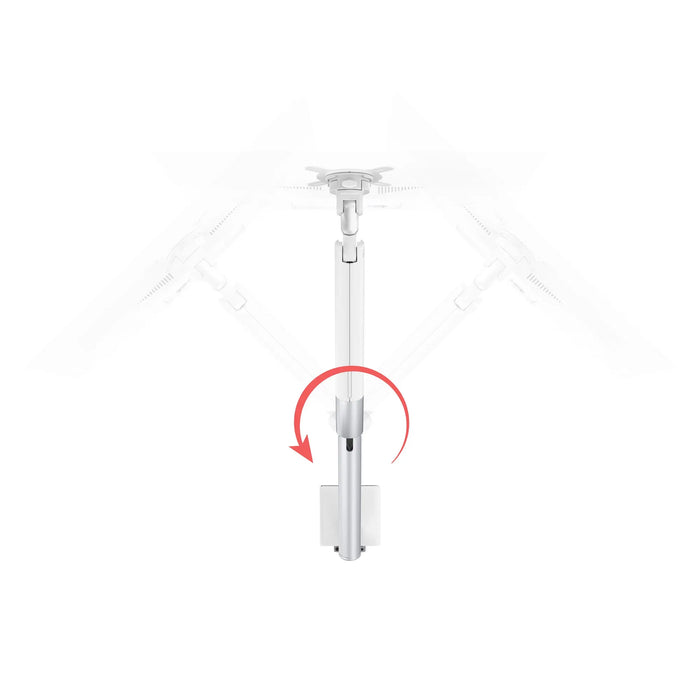

  • 360 degree swivel flexible arm rotation

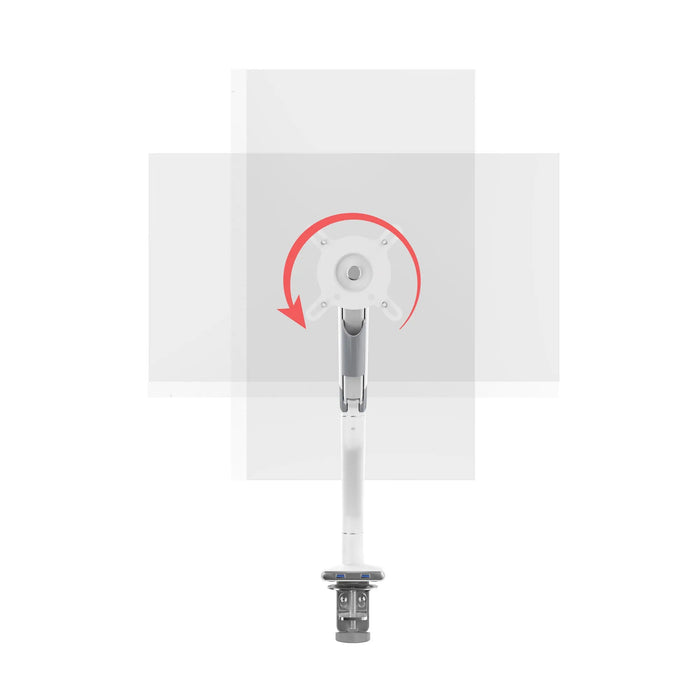

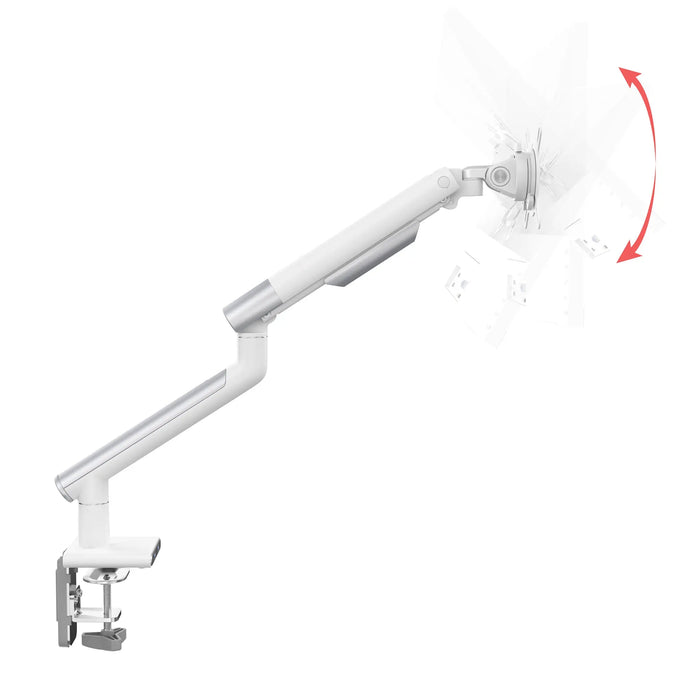

  • VESA joint allows for portrait to landscape mounting orientation and also has 180-degree vertical or horizontal flexibility

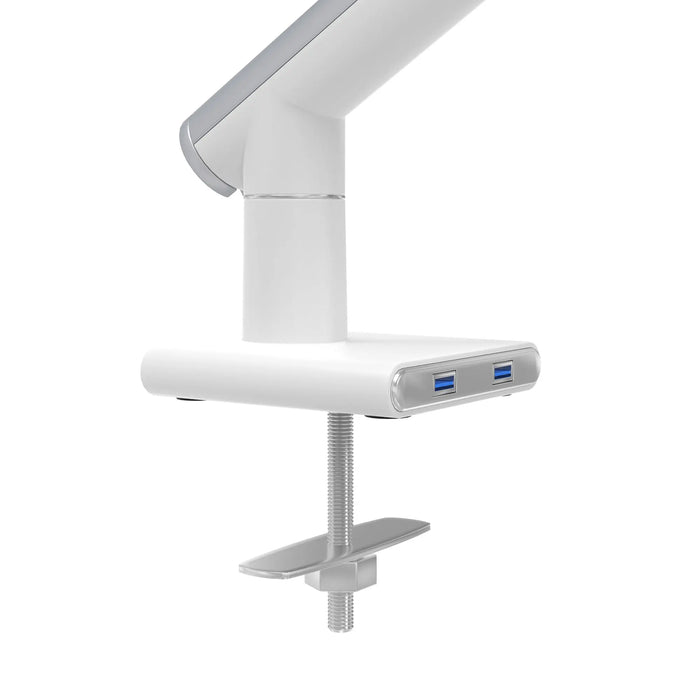

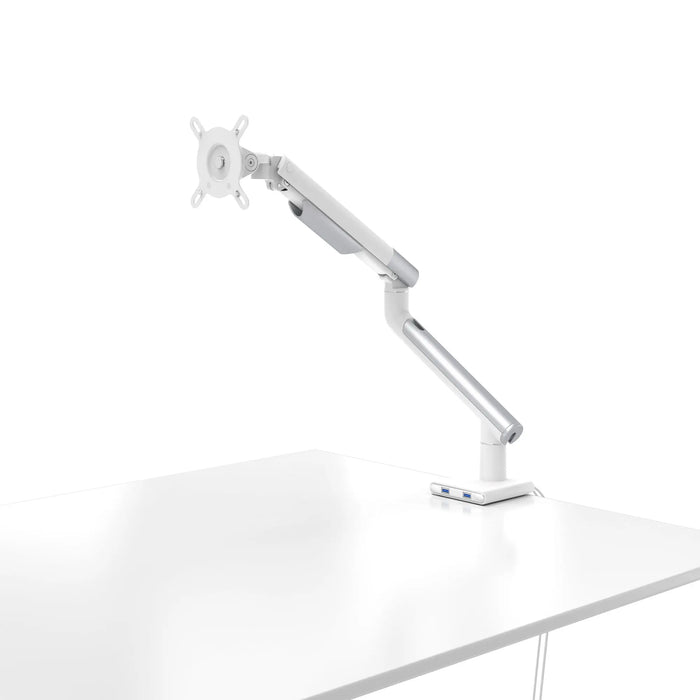

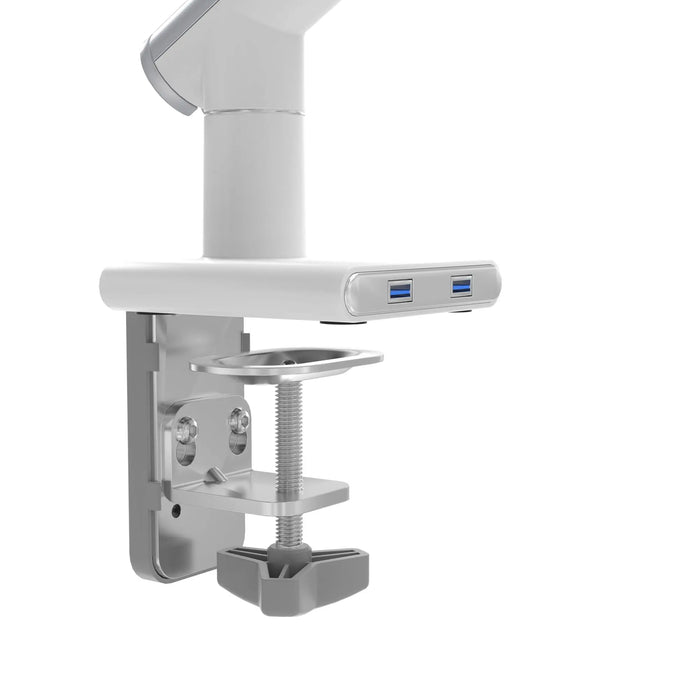

  • 2 USB ports with wires at rear at the base of the mount for ultra-portable device charging

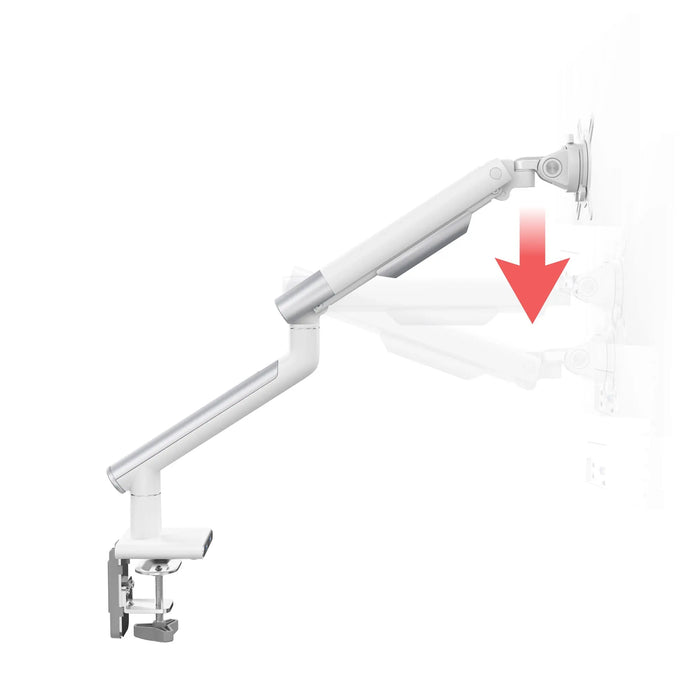

  • Built-in Spring gauge for Locking/Unlocking gas spring arm versatility for optimal preferred height adjustments and perfect weight adjustments
  • C-Clamp offers a tool bar to store included integral Allen key tools to make joint adjustments when needed

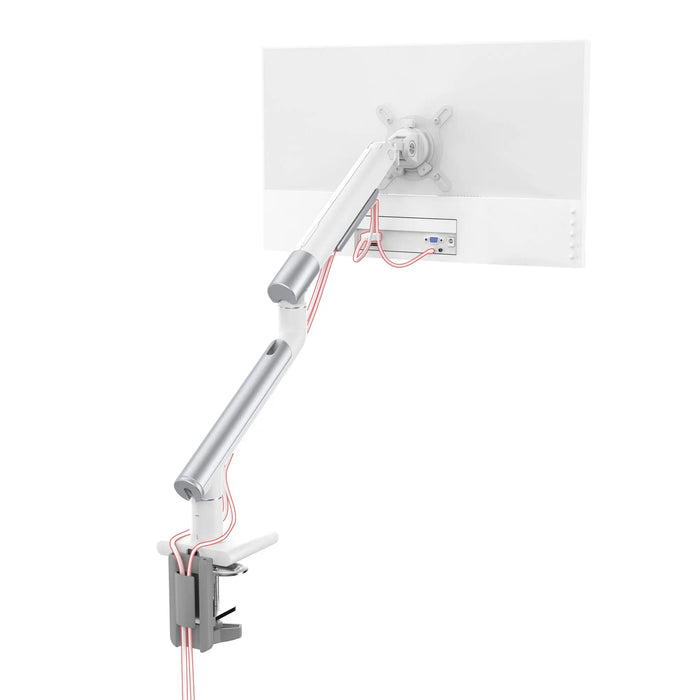

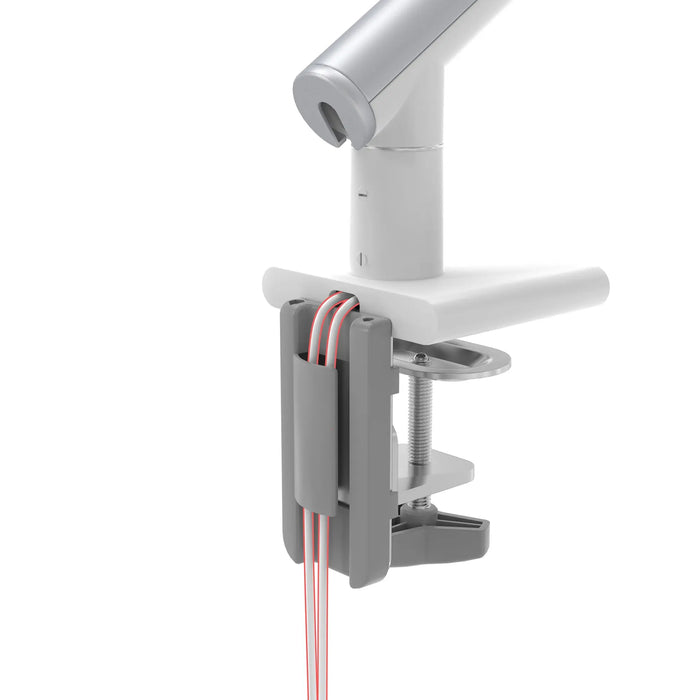

  • Cable management with detachable clips throughout the arm for a clean and amalgamated setup
  • Available with C-Clamp or Grommet style mounting

  • Compatible 75 x 75 mm or 100x100 mm VESA mount plate. Compatible with screens up to 32” max and also CTA’s VESA compatible enclosures and holders

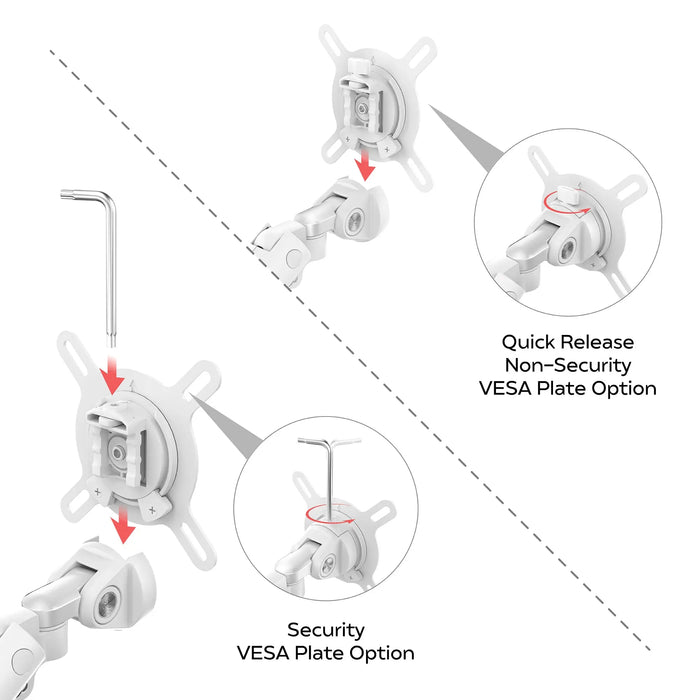

  • Includes 2 VESA plate types, one has a security feature to keep your monitor secure, and the other is a simple quick release plate leaving you the option for your mounting environment

    • Specifications

    Measures
    • • Overall Dimensions: 4.6” W x 21.6” D x 17.1”H
    • • Height Adjustment Range: 6.8”H – 17.1”H
    • • Rated Load Capacity Max: 19.8 lbs
    • • C-Clamp mounts surfaces with thickness of: 0.39 – 3.35”
    • • Grommet mounting has pre-dilled hole diameter of 0.39 – 2.3”
    • • Weight: 7 lbs., 10 oz.
    Package Includes

    • (1) C-Clamp
    • (1) Grommet Clamp
    • (1) Slim Spring Monitor Arm
    • (2) VESA plates
    • (1) Set of hardware

    Specifications

    Package Includes

    Downloads

    • • Overall Dimensions: 4.6” W x 21.6” D x 17.1”H
    • • Height Adjustment Range: 6.8”H – 17.1”H
    • • Rated Load Capacity Max: 19.8 lbs
    • • C-Clamp mounts surfaces with thickness of: 0.39 – 3.35”
    • • Grommet mounting has pre-dilled hole diameter of 0.39 – 2.3”
    • • Weight: 7 lbs., 10 oz.
    • (1) C-Clamp
    • (1) Grommet Clamp
    • (1) Slim Spring Monitor Arm
    • (2) VESA plates
    • (1) Set of hardware
    Download Sell Sheet
    Download Manual
